PCZ Heavy Hammer Crusher

Processing ability: 5–150 t/h

Inlet size: 1020×750–1850×1400 mm

Feeding size: ≤600–≤1200 mm

Applied material: limestone, granite, cobble, dolomite, bluestone, iron ore, etc.

  • Photo
  • video

The Description and Advantages of PCZ Heavy Hammer Crusher:

PCZ Heavy Hammer crusherl is one type of the crushing machines and is also a machine with relatively advanced technology among the hammer crusher series in the present mining machinery industry. It uses advanced production technology and can realize one-time crushing, and it has the features of high efficiency, energy conservancy and environment protection.

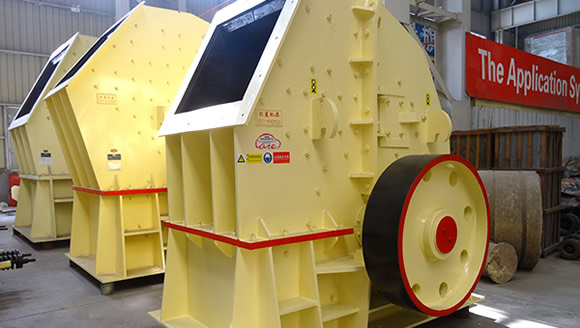

PCZ Heavy Hammer Crusher

The Performance Characteristics of Heavy Hammer Crusher:

The final products can be adjusted according to the demands of the customers and the specifications of coarse, medium and fine particles are complete; and there are no flaky or smooth particles but plenty of angular particles to ensure the compression strength of the final products, so that they are very suitable for the construction of highway, buildings and large-sized projects.

The Application and Usage of PCZ Heavy Hammer Crusher:

This crusher gets rid of the primary crushing process of jaw crusher so that it has big output, high efficiency, and uses low energy, saves manpower and material resources and reduces the crushing cost of materials. This series of product is suitable for crushing various kinds of medium hard materials and crisp materials such as limestone and coal in cement, mine, coal dressing, powder plant, chemistry and building material industry.

PCZ heavy hammer crusher is especially suitable for crushing limestone and medium hard stone materials whose compression strength is less than 200Mpa, which can crush the stone materials for one time without secondary-stage crushing and reshaping process, so that it can reduce the production cost by about 40% and the energy consumption is low and the investment is reduced.

The electromotor drives the rotor to rotate with high speed in the crushing chamber. The materials are fed into the machine from the upper feeding mouth and are crushed under the hitting, impacting, cutting and grinding of the hammer which is moving with high speed. On the bottom of the rotor, there is sieve plate and the crushed materials that is smaller than the screen size are discharged from the sieve plate, and the coarse particles bigger than the screen size are retained on the sieve plate to be hit and ground again by the hammer and finally be discharged from the machine from the sieve plate.

Technical data

Model Rotor diameter×length
    (mm)
Feed opening Length×width
(mm)
Feeding size
   (mm)
Capacity
  (t/h)
Power
(kw)
Total weight
(t)
PCZ1308 1300×1000 930×650 ≤600 100-180 4P   132 2818×2100×2391
PCZ1410 1400×1000 1020×750 ≤700 180-230 4P   160/2×90 2830×2100×2485
PCZ1610 1600×1000 1150×1000 ≤900 260-350 4P   220-250/2×132 3370×2415×2751
PCZ1615 1600×1500 1400×1000 ≤900 380-550 4P   355-400/2×200 3371×2925×2752
PCZ1716 1700×1600 1640×1300 ≤1200 600-1100 4P   2×250 3520×3000×3210
PCZ1720 1700×2000 1980×1300 ≤1200 800-1200 4P   2×400 3670×3390×3328
PCZ1920 1900×2000 1850×1600 ≤1500 900-1500 2×500 3729×3300×4451
PCZ2225 2200×2500 2100×2300 ≤1700 1500-3200 1250 3931×4100×4660
