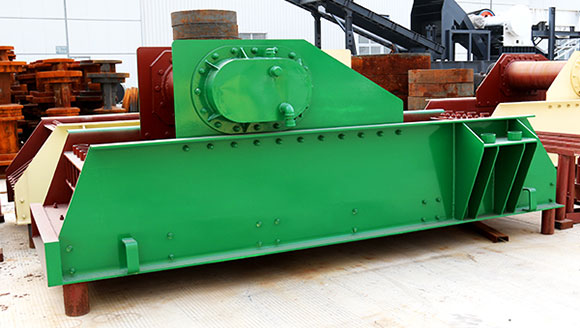

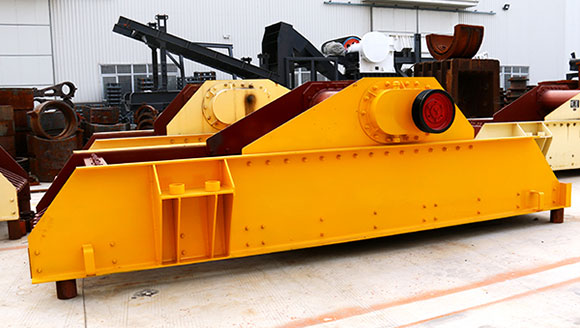

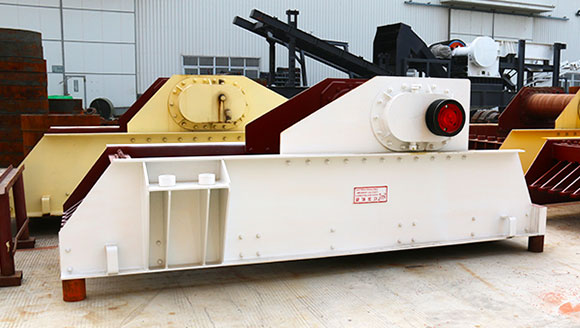

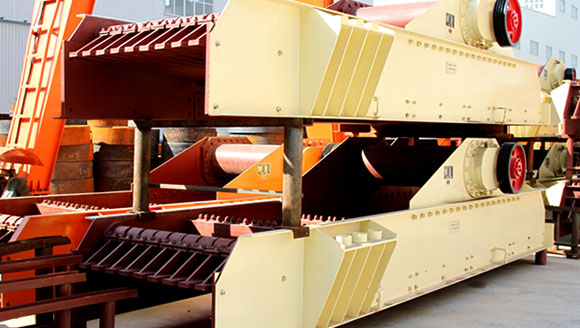

Vibrating Feeder

Processing capacity: 1-105t/h

Feeding size: 125-250mm

Feed opening: 150×250-300×1300mm

Motor power: 5.5-55kw

Total weight: 0.8-15.6t

  • Photo
  • video

The Application and Features of Vibrating Feeder:

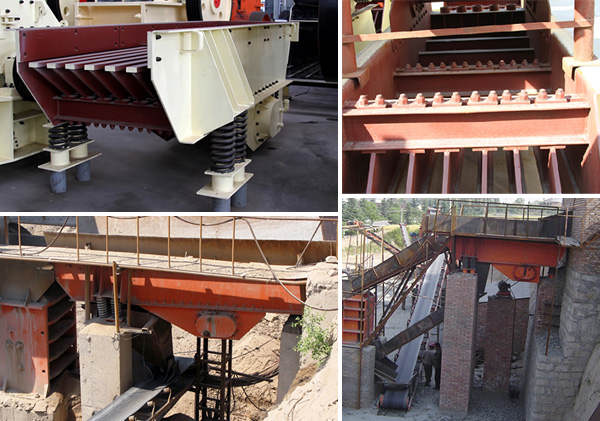

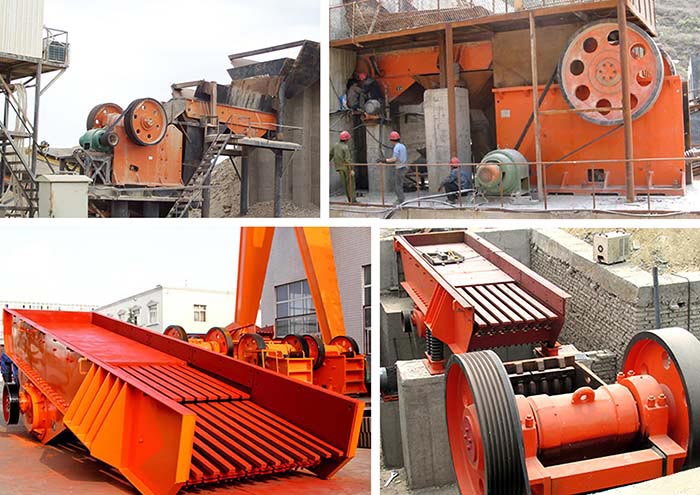

The vibrating feeder produced by our company is a linear vibratory feeder with the features of stable vibration, reliable working and long service life. It can continuously and evenly feed the crushing equipment and classify the materials, so that it is widely used in the crushing and screening combination plant in ore beneficiation, building material, silicate and chemical industry.

Vibrating Feeder

The Advantages and Benefits of Vibrating Feeder:

It has the advantages of simple structure, reliable operation, convenient adjustment and installation, light weight and small size and convenient maintenance and repair. Adopting sealed structure, powder dust pollution can be avoided.

feeder

Vibrating feeder has stable vibration, reliable working and long service life. The exciting force can be adjusted to change and control the material flow and the adjustment is convenient and stable. The vibration motor is the vibration source, so that the noise is low, electricity consumption is small and the adjusting performance is good without material clashing.

The electromotor drives the eccentric block of the exciter to rotate with high speed through the v-shaped belt. The eccentric block can produce big eccentric force, and the exciting screen box will do circular motion with certain amplitude. The materials on the slant screen will be influenced by the impulse transmitted from the screen box and do continuous throwing motion, and the materials smaller than the screen hole will go through the screen, thus realizing classifying.

Technical data

Model Max.
Feeding
Size
(mm)
Processing
Capacity
(t/h)
Motor
Power
(kw)
Obliquity
of material
trough
(°)
Trough
size
(mm)
Dimensions
(L×W×H)(mm)
GZD-650×2300 300 80-100 1.1×2 10-20 650×2300 2300×1360×780
GZD-750×2500 350 100-130 1.5×2 10-20 750×2500 2500×1460×780
GZD-850×3000 400 120-150 3×2 10-20 850×3000 3110×1800×1600
GZD-1000×3600 500 150-200 3.7×2 10-20 1000×3600 3850×1950×1630
GZD-1100×3600 580 240-300 3.7×2 10-20 1100×3600 3600×2050×1660
GZD-1300×3600 650 450-600 7.5×2 10-20 1300×3600 3900×2350×1750
GZD-1500×3600 1050 450-1000 10×2 10-20 1500×3600 3900×2000×1750
GZD-2000×3600 1200 550-1000 22×2 10-20 2000×3600 3600×2000×1750
GZD-2500×5000 1500 650-1500 11 10-20 2500×5000 5000×2500×1800
ZSW-380×95 500 100-180 11 0-10 3800×960 3800×1640×1320
ZSW-490×110 630 150-400 15 0-10 4900×1100 4980×1830×1320
ZSW-490×130 750 400-700 22 0-10 4900×1300 4980×2580×2083
ZSW-600×130 750 400-700 22 0-10 6000×1300 6082×2580×2083
ZSW-600×150 800 500-900 30 0-10 6000×1500 6086×2662×1912
ZSW-600×180 800 700-1500 37 0-10 6000×1800 6310×3262×2230
