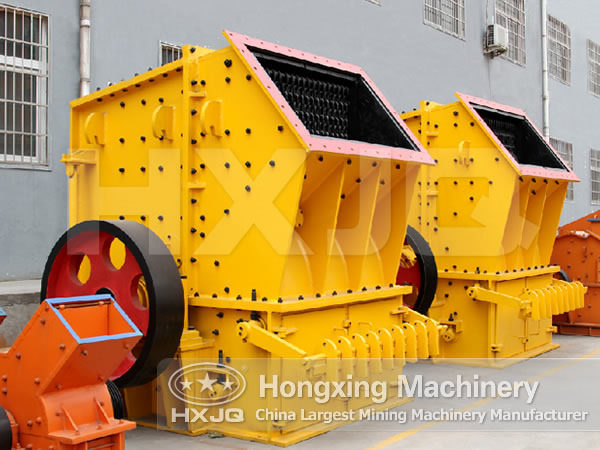

Single Stage Crusher

Processing ability: 100–420 t/h

Feeding granularity: ≤800–≤1250 mm

Product granularity: <3–8 mm

Power: 160–630 kw

Applied material: limestone, shale, gypsum, coal.

  • Photo
  • video

The Description and Function of Single Stage Crusher:

Single Stage Crusher

This single-stage crusher can crush the mined large-sized ores to the granularity of an average of 5mm for only one time, and it is the ideal product for replacing traditional two-stage and three-stage crushing method, thus simplifying the production process and saving infrastructure investment and production cost.

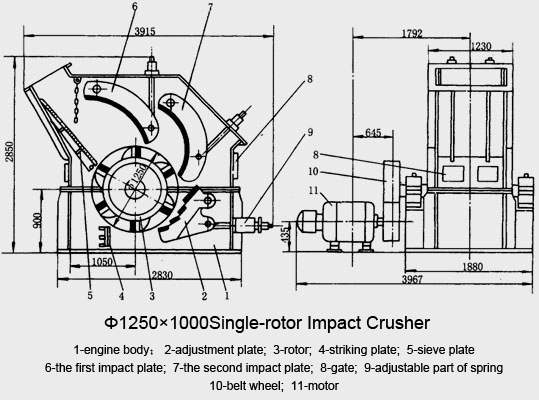

single_stage_crusher

The Performance Characteristics of Single Stage Crusher:

1. It is big crushing ratio and the maximum feeding granularity can reach 1.3-1.5m.

2. The discharging granularity can be adjusted in the ranges of 3-150mm.

3. The discharging materials are fine has good shape, and the content of powder-shaped materials is below 20%.

Single Stage Crusher

1. It simplifies the production process and the original two-stage or three-stage crushing can be reduced to one stage.

2. The operational cost is low; the matched power of the system is mall and the production cost is greatly reduced.

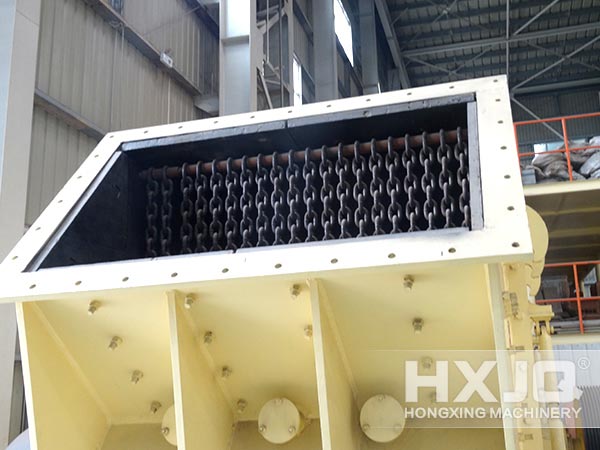

The materials go into the crushing chamber and stack on the middle bracket specially designed in the machine, and the hammer runs in the gap between the middle bracket, and the materials will be continuously crushed and then fall down. The fell small materials will be further crushed by the hammer running with high speed and finally discharged after being screened by the arc grating plate.

Technical data

Model Type Rotor diameter Feeding size
(mm)
Product Size
(mm)
Capacity
(t/h)
Power
(kw)

DPC140

Single Rotor

1400

≤800

<3-8

100-140

160-220

DPC160

1600

≤1000

150-240

280-355

DPC200

2000

≤1250

330-420

500-630
