Fine Crusher

Supply Ability:20 Set/Sets per Month

Production capacity:30-550t/h Port:Qingdao,Tianjin, Shanghai or others

Feature:small size, simple structure, high crushing ratio, low energy consumption.

  • Photo
  • video

The Application and Function of Fine Crusher:

Fine crusher is one ideal choice for secondary and tertiary crushing with the most outstanding advantage that its finished material in cubic shape. Therefore it is widely used in highway and railway construction as well as water conservancy and hydro power project.

fine_crusher

The Advantages and Benefits of Fine Crusher:

1. High crushing ratio and production efficiency.

2. Less spare part consumption and low operation cost.

3. Between-layer pressuring crushing and better finished product shape.

4. Thin oil lubrication makes the life time increased.

Fine Crusher

Fine crusher is suitable for the fine crushing and medium crushing of man many kinds of hard and crisp materials such as refractory, cement, silica sand and steel grit. It is highly efficient and energy saving, and saves energy by 50% compared with traditional tertiary impact crusher, so that it is the most advanced tertiary impact crushing equipment in the world.

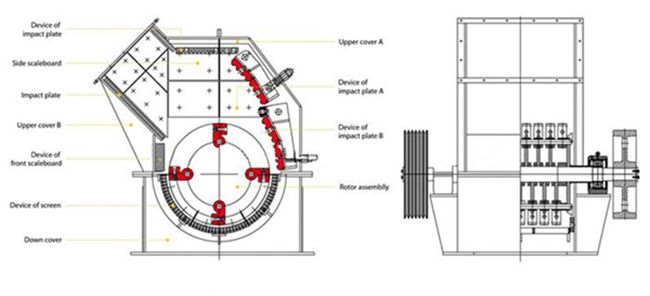

When the tertiary impact crusher works, driven by the electromotor, the rotor rotates with high speed, and the materials go into the first crushing chamber and are crushed with the plate hammer of the rotor, and then go into the secondary crushing chamber for grinding, and finally the materials are discharged from the discharging mouth.

Technical data

PXJ tertiary impact crusher
Rotorø×Width
(mm)
Rotorø×Width
(mm)
Rotorø×Width
(mm)
Rotorø×Width
(mm)
Rotorø×Width
(mm)
Rotorø×Width
(mm)
Rotorø×Width
(mm)
Rotorø×Width
(mm)
Specification
800×400
800×600
800×800
1010×1010
1200
×1200
1400
×1400
1600
×1600
1800
×1800
Feed opening size(mm)
400×185
500×250
550×300
1000×350
1200
×450
1500
×500
1600
×550
1800
×800
Feeding size (mm)
<120
<180
<180
<180
<180
<190
<190
<190
Discharging size (mm)
0-10
0-10
0-10
0-10
0-10
0-10
0-10
0-10
Adjustable range of discharge opening (mm)
5-50
5-50
5-50
5-50
5-50
5-50
5-50
5-50
Cement Clinker(t/h)
10-30
1040
20-45
25-55
35-90
50-150
85-210
125-270
Limestone(t/h)
18-45
23-55
28-65
35-75
45-110
50-150
95-260
140-310
Power(kw)
4P   37
4P   45
4P   45
4P   55
6P   110
6P   160
4P   250
4P   315

Quick Way to Get Price

Please tell us your materials, capacity and finished product design, we can offer better service for you. Contact Email: sales@hxjq.com
