Belt Conveyor

Processing ability: 78–2195 t/h

Belt width: 500–1600 mm

Length: 0–40 m

Conveying speed: 1.3–2.0 m/s

Applied material: coal, gravel, sand, cement, chemical fertilizer, food, etc

  • Photo
  • video

The Application and Features of Belt Conveyor:

Belt conveyor has the advantages of big conveying amount, simple structure, convenient maintenance and standard spare parts. It has been widely used in many industrial departments such as mine, metallurgy and coal for transporting bulk materials and piece articles.

The Structure Composition of Belt Conveyor:

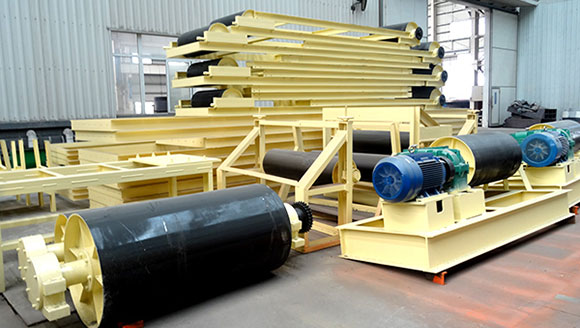

The belt conveyor is mainly composed of rack, conveying belt, belt roller, tension device and driving device. The rack is connected with excellent steel plate, and there are belt roller and carrier roller for driving and supporting the conveying belt, and there are two driving methods: reduction motor drive and motorized pulley drive.

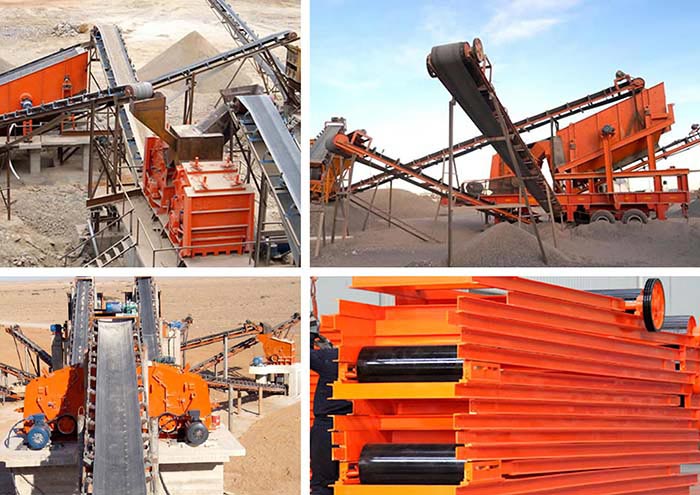

belt conveyor

Some Notes Our Company Suggests for Customers:

This series of conveying equipment can be used in the temperature ranges of -20℃~+40℃ and the temperature of the materials to be conveyed should be below 50℃.

The belt conveyor produced by our company can economically and effectively convey all kinds of materials. In the industrial production, the belt conveyor is the bond for continuous production between the production mechanical machines to realize the continuity and automation of the production link and improve the production efficiency and reduce labor intensity.

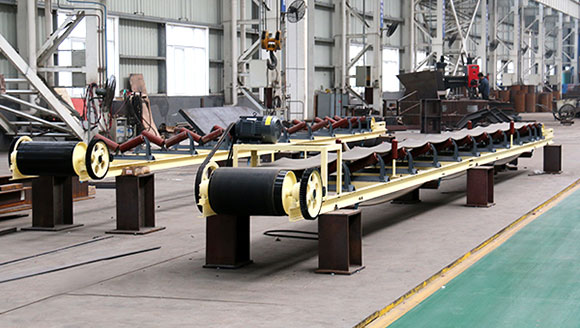

belt conveyor

The belt conveyor moves according to the friction drive principle and its conveying amount is big, conveying distance is long and conveyance is stable, and there is no relative movement between the materials and the belt. With the advantages of low noise, simple structure, convenient maintenance and standard spared parts, it is widely used in the conveyance of bulk materials or piece articles and the production line in mine, metallurgy, chemistry, casting and building material industry and the production departments such as hydropower station construction site and port.

The belt conveyor is mainly composed of rack, conveying belt, belt roller, tension device and driving device. The rack is connected with excellent steel plate, and there are belt roller and carrier roller for driving and supporting the conveying belt, and there are two driving methods: reduction motor drive and motorized pulley drive.

Technical data

Belt width(mm) Conveying length(m)
Power(kw)
Conveying speed(m/s) Conveying amount(t/h)

500

<=12
3
12-20
4-5.5
20-30
5.5-7.5

1.3-1.6

78-191

650

<=12
4
12-20
5.5
20-30
7.5-11

1.3-1.6

131-323

800

<=6
4
6-15
5.5
15-30
7.5-15

1.3-1.6

278-546

1000

<=10
5.5
10-20
7.5-11
20-40
11-22

1.3-2.0

435-853

1200

<=10
7.5
10-20
11
20-40
15-30

1.3-2.0

655-1284

1400

<=10
11
10-20
18.5
20-40
22-37

1.3-2.0

893-1745

1600

<=10
15
10-20
22
20-40
30-45

1.3-2.0

1069-2195
