Compound Cone Crusher

Processing capacity: 12-1000t/h

Discharge opening: 3-60mm

Feeding size: 35-300mm

Applied material: barite, marble, talcum, calcite, dolomite, fluorite, kaoline, coal, gypsum.

  • Photo
  • video

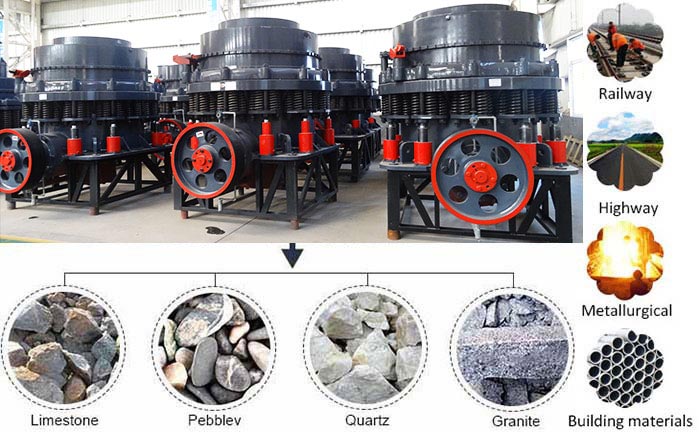

The Application and Handling Materials of Compound Cone Crusher:

Compound cone crusher is widely used in metallurgy, building material, road paving, chemistry and silicate industry and is suitable for processing all kinds of ore and rocks with medium and above medium hardness.

Compound Cone Crusher

The Advantages and Benefits of Compound Cone Crusher:

This crusher has the features of big crushing ratio, high efficiency, high processing amount, low running cost, convenient adjustment and economical use. Due to the reasonable material selection of spare parts and structure designing, it has long service; and the granularity of the crushed products is even, thus reducing the circulating load.

Compound Cone Crusher

This machine is divided into standard type and short-headed type. Generally speaking, the standard type has big feeding granularity and relatively coarse discharging granularity, and the short-headed type has steep crushing cone and small feeding granularity which is conducive to producing fine particle materials, for this reason, the standard type compound cone crusher is generally used for coarse and medium crushing and the short-headed type compound cone crusher is generally used for medium and fine crushing.

Compound Cone Crusher

This machine adopts lubricating grease for sealing, thus avoiding the problems that the water feeding and drainage system is easy to be blocked and the defect that water and grease are easy to mix; and the spring protective system is an overload protective device which can make sure that foreign matters and iron go through the crushing chamber without damaging the crusher.

When cone crusher begins to work, the electro motor drives the eccentric sleeve through the spring coupling, drive shaft and a pair of angle gear, so that the crushing wall of cone crusher gets close to and then gets away from the surface of the rolling mortar wall fixed on the adjusting sleeve, and the ores inside the crushing chamber will be constantly impacted, squeezed and bent to be crushed.

Technical data

Type Model Diameter
of large
end of
crushing
 cone(mm)
Adjusting
 Range of
Discharge
Opening(mm)
Feed
opening
size of the
open edge
when
recommending
 the min.
Discharge
opening
(mm)
Max.feeding
size(mm)
Processing
capacity
(t/h)
Main
motor
 power
(kw)
Machine
weight
(kg)
PSG 900 0910 914 (3′) 9-22 102 85 45-91 75 9980
0917 13-38 175 150 59-163
0904 3-13 41 35 27-90
0906 3-16 76 65 27-100
PSG 1300 1313 1295 (4¼′) 13-31 137 115 109-181 160 22460
1321 16-38 210 178 132-253
1324 19-51 241 205 172-349
1306 3-16 64 54 36-163
1308 6-16 89 76 82-163
1310 8-25 105 89 109-227
PSG 1600 1620 1676 (5½′) 16-38 209 178 181-327 250 43270
1624 22-51 241 205 258-417
1626 25-64 269 228 299-635
1607 5-13 70 60 90-209
1608 6-19 89 76 136-281
1613 10-25 133 113 190-336
PSG 2100 2127 2134 (7′) 19-38 278 236 544-1034 400 86730
2133 25-51 334 284 862-1424
2136 31-64 369 314 1125-1814
2110 5-16 105 89 218-463
2113 10-19 133 113 404-580
2117 13-25 178 151 517-680
