Tertiary Crusher

The Handling Materials and Application of Tertiary Crusher:

Tertiary crusher is widely used for the fine crushing of many kinds of minerals such as granite, basalt, limestone, river cobble, cement clinker, quartz stone, iron ore and bauxite, and at the same time, it can also be used for producing excellent stone materials in artificial sand making, high-grade highway, railway, water conservancy, airport, building, cement, refractory and metallurgical industry.

The Advantages and Benefits of Tertiary Crusher:

Tertiary crusher has stable and reliable performance, simplified technology, simple structure and convenient maintenance. It has big production capacity and the hammer has long service life.

Tertiary crusher is suitable for the fine crushing and medium crushing of man many kinds of hard and crisp materials such as refractory, cement, silica sand and steel grit. It is highly efficient and energy saving, and saves energy by 50% compared with traditional tertiary impact crusher, so that it is the most advanced tertiary impact crushing equipment in the world.

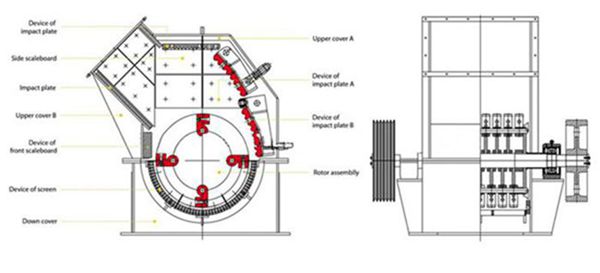

When the tertiary impact crusher works, driven by the electromotor, the rotor rotates with high speed, and the materials go into the first crushing chamber and are crushed with the plate hammer of the rotor, and then go into the secondary crushing chamber for grinding, and finally the materials are discharged from the discharging mouth.

Technical data

PXJ tertiary impact crusher	Rotorø×Width (mm)	Rotorø×Width (mm)	Rotorø×Width (mm)	Rotorø×Width (mm)	Rotorø×Width (mm)	Rotorø×Width (mm)	Rotorø×Width (mm)	Rotorø×Width (mm)
Specification	800×400	800×600	800×800	1010×1010	1200 ×1200	1400 ×1400	1600 ×1600	1800 ×1800
Feed opening size(mm)	400×185	500×250	550×300	1000×350	1200 ×450	1500 ×500	1600 ×550	1800 ×800
Feeding size (mm)	<120	<180	<180	<180	<180	<190	<190	<190
Discharging size (mm)	0-10	0-10	0-10	0-10	0-10	0-10	0-10	0-10
Adjustable range of discharge opening (mm)	5-50	5-50	5-50	5-50	5-50	5-50	5-50	5-50
Cement Clinker（t/h）	10-30	1040	20-45	25-55	35-90	50-150	85-210	125-270
Limestone（t/h）	18-45	23-55	28-65	35-75	45-110	50-150	95-260	140-310
Power（kw）	4P   37	4P   45	4P   45	4P   55	6P   110	6P   160	4P   250	4P   315
