Home > Product > Stone crushing machine > Sand Washer

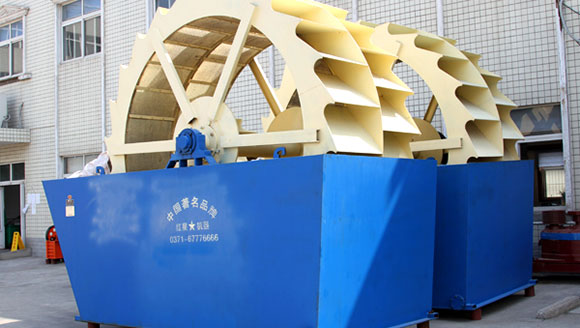

Sand Washer

Processing capacity: 5-105t/h

Feeding size: 125-250mm

Feed opening: 150×250-300×1300mm

Applied material: barite, marble, talcum, calcite, dolomite, fluorite, kaoline, coal, gypsum.

  • Photo
  • video

The Function and Advantages of Sand Washer:

Sand washer has high washing degree, reasonable structure and high output, and the driving part is separated from water and sand, so that its failure rate is far lower than the commonly used sand washing machine and it is the best choice for the upgrading and updating of the domestic sand washing industry.

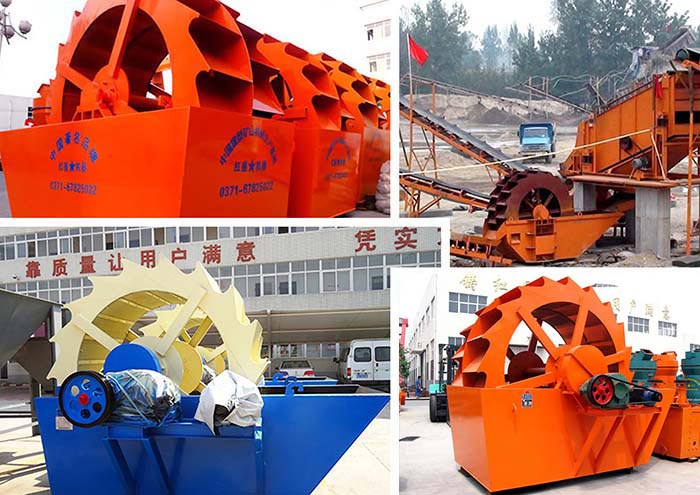

Sand Washer

The Performance Characteristics and Application of Sand Washer:

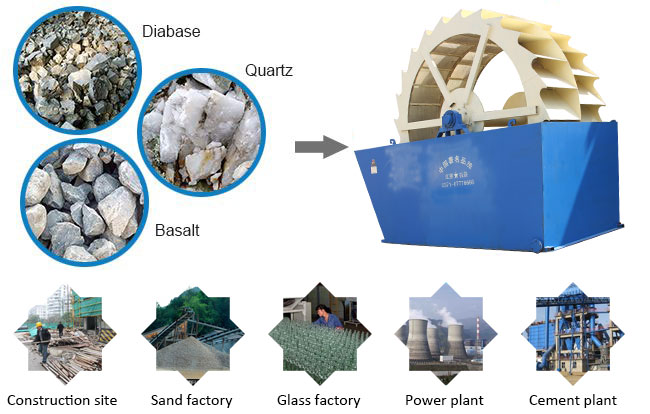

Sand washer has many outstanding features such as simple structure, stable operation, high washing degree and high output so that it is widely used in many industrial departments such as building site, sand and stone plant, glass plant, power plant and concrete sand making.

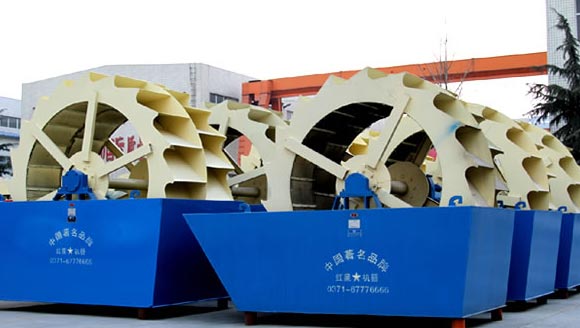

Sand Washer

Sand washer has many outstanding features such as simple structure, stable operation, high washing degree and high output so that it is widely used in many industrial departments such as building site, sand and stone plant, glass plant, power plant and concrete sand making.

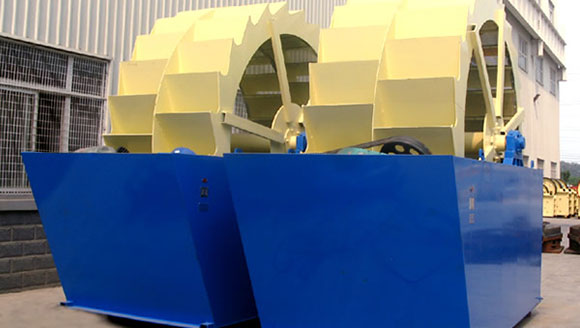

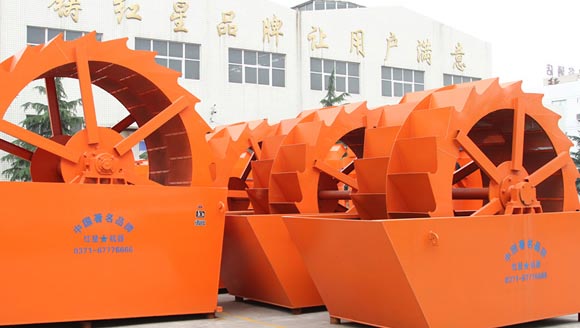

Sand Washer

When sand washer works, the power plant drives the impeller to slowly rotate after slowing down through the V-shaped belt, reducer and gear, and sand and stone materials go into the washing chute from the material cabin, and roll driven by the impeller and grind with each other to remove the impurities covering the surface of the sand and stone materials, and at the same time break the moisture layer coated on the sand particles for the purpose of dehydration. In the meantime, add water in it to form a strong water flow to timely wash away the impurities and foreign matters with small proportion and discharge them from the overflow port to complete the washing process.

Technical data

Specification Processing Capacity(t/h) Motor Power
(kw)
2208 15-40 8p 4kw
2611 20-65 8p 5.5kw
2914 50-100 8p 7.5kw
3020 120-200 8p 11kw
