VSI Crusher

Processing ability: 0.26–30 m3

Rotate speed: 200–530 r/min

Diameter: 240–850 mm

Applied material: pebble, calcite, granite, quartz, concrete, dolomite, bluestone, iron ore, limestone.

  • Photo
  • video

The Handling Materials and Function of VSI Crusher:

VSI crusher is widely used in various metallic and nonmetallic ores, cement, abrasive material, glass, construction material, machine-made sand, metallurgy, etc. with best feeding size from 30mm to 50mm. It is also applicable to crush various stones with different hardness in medium and fine crushing area, such as iron ore, non ferrous metal, emery, bauxite, quartz sand, basalt, etc.

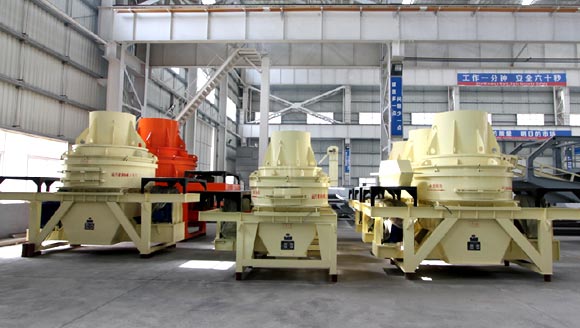

VSI crusher

The Performance Characteristics of VSI Crusher:

1. It is ideally suitable for granule reshaping and sand making.

2. Small influence by humidity (humidity can amount to 8%).

3. End products with cubic shape, low flakiness rate, low noise (less than 95 db) and low dust.

sand_making_machine

The Performance Characteristics of VSI Crusher:

1. It is ideally suitable for granule reshaping and sand making.

2. Small influence by humidity (humidity can amount to 8%).

3. End products with cubic shape, low flakiness rate, low noise (less than 95 db) and low dust.

Technical data

Model
specification
Max.feeding
size
(mm)
Power
(kw)
Rotation
speed of
impeller
(r/min)
Capacity
(t/h)
Overall
dimension
(L×W×H)
(mm)
HX-06 35 2P   37-55 2000-3000 12-30 2500×1620×2600
HX-07 45 4P   55-75 1500-2500 25-55 2700×1760×2800
HX-09 50 4P   110-150 1200-2000 55-100 3900×2000×3070

Quick Way to Get Price

Please tell us your materials, capacity and finished product design, we can offer better service for you. Contact Email: sales@hxjq.com
