Home > Product > Stone crushing machine > Hydraulic Cone Crusher

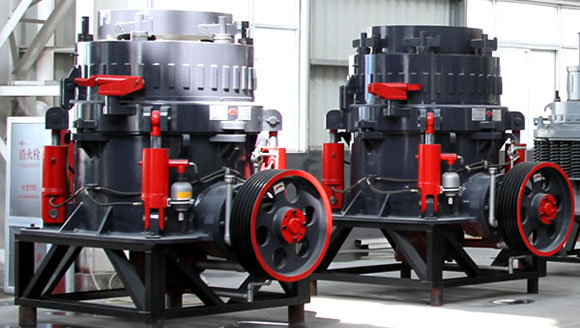

Hydraulic Cone Crusher

Processing capacity: 12-1000t/h

Cone diameter: 600-2200mm

Feeding size: 35-300mm

Discharge opening: 3-60mm

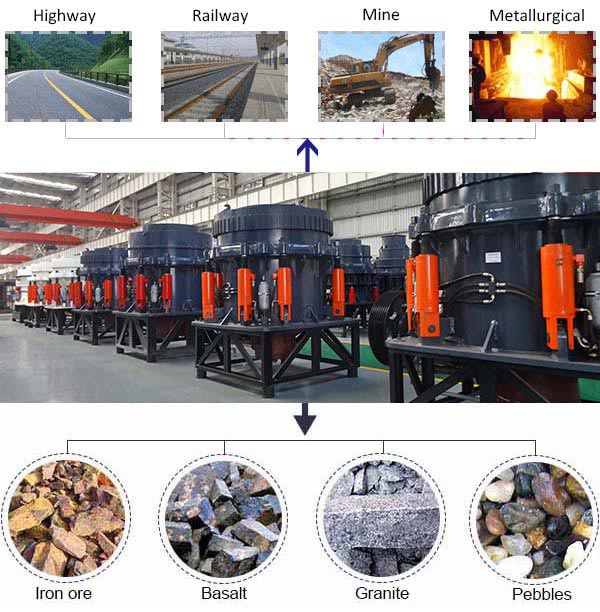

Applied material: barite, marble, calcite, kaoline, coal, gypsum, concrete.

  • Photo
  • video

The Function and Advantages of Hydraulic Cone Crusher:

Due to the adoption of good crushing frequency and eccentric distance, the content of fine particle materials in the crushed materials is higher, and the content of the materials smaller than the discharging mouth can reach 80%, thus significantly improving the processing ability of the following equipment and reducing the comprehensive energy consumption.

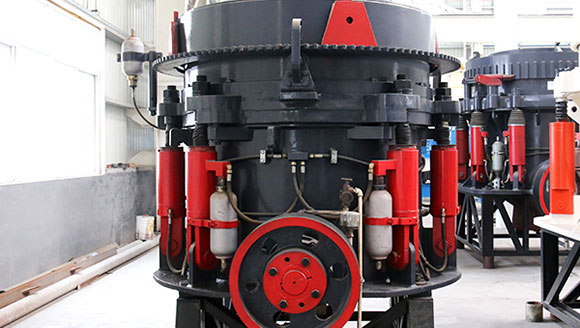

Hydraulic Cone Crusher

The Performance Characteristics of Hydraulic Cone Crusher:

1. The perfect combination of high performance crushing chamber and high crushing frequency of PYG series cone crusher greatly improves the processing ability of this machine, and due to the adoption of lamination crushing principle, the crushed products are in the shape of cube, thus greatly reducing needle-shaped materials.

2. It adopts hydraulic operation, so that the use is convenient and easy to realize automation and its reliability and service life is greatly improved.

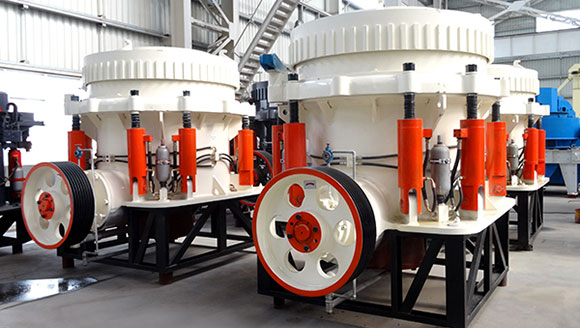

Hydraulic Cone Crusher

3. It is simple in structure, convenient and fast in operation, maintenance and adjustment of the discharging mouth. The examination and repair saves both time and labor, and especially that the lining board is easy to change, thus reducing the stoppage time.

4. This machine has reliable performance and convenient operation. Due to the optimization designing and hydraulic protection to the machine, the failure rate of the equipment is significantly reduced, and under normal circumstances, the trouble-free operation rate of the equipment can exceed 85%.

When cone crusher begins to work, the electro motor drives the eccentric sleeve through the spring coupling, drive shaft and a pair of angle gear, so that the crushing wall of cone crusher gets close to and then gets away from the surface of the rolling mortar wall fixed on the adjusting sleeve, and the ores inside the crushing chamber will be constantly impacted, squeezed and bent to be crushed.

Technical data

Model Cavity Diameter
of large
end of
crushing
cone
(mm)
Width of
Feeding
Opening(mm)
Max.
feeding
size
(mm)
Adjusting
Range of
Discharge
 Opening
 (mm)
Processing
capacity(t/h)
Main motor
power(kw)
Weight of
Main
Machine
(t)
HXHP200 C1 900 210 178 22~38 160~250 4P  160 10.1
C2 155 132 18~38 145~250
C3 130 110 14~38 120~250
F1 118 100 12~25 108~210
F2 90 76 10~25 81~210
F3 70 60 8~25 72~210
HXHP300 C1 1100 235 200 26~45 230~445 4P   220 17.8
C2 211 180 20~45 200~445
C3 135 115 16~45 180~445
F1 124 105 14~25 160~220
F2 96 82 12~25 140~220
F3 70 60 8~25 120~220
HXHP400 C1 1400 330 280 26~51 270~630 4P  315 25
C2 200 170 22~51 243~630
C3 152 130 16~51 210~630
F1 135 115 12~25 162~370
F2 106 90 10~25 126~370
F3 80 68 8~25 104~370
HXHP500 C1 1500 335 285 32~51 365~790 4P  400 34.1
C2 229 190 25~51 328~790
C3 180 152 19~51 280~790
F1 152 130 13~25 202~450
F2 124 105 10~25 158~450
F3 88 75 8~25 122~450
HXHP800 C1 2000 385 326 32~51 616~1100 4P  630 69.2
C2 350 298 25~51 522~1100
C3 280 238 16~51 380~1100
F1 160 136 13~25 328~730
F2 120 102 10~25 270~730
F3 90 77 8~25 166~730
