Tumbling Mill

Production capacity: 0.5-500t/h

Feeding size: ≤25mm

Material handling: cement, silicate, building material, refractory material, fertilizer, ferrous metal and non-ferrous metal, glass ceramics, etc.

  • Photo
  • video

The Description and Application of Tumbling Mill:

Tumbling mill can grind many kinds of ore and other materials, thus it is widely used in powder-making production line including cement, silicate, new-type building material, refractory material, chemical materials, ore dressing, ferrous metal and non-ferrous metal, glass ceramics industries etc.

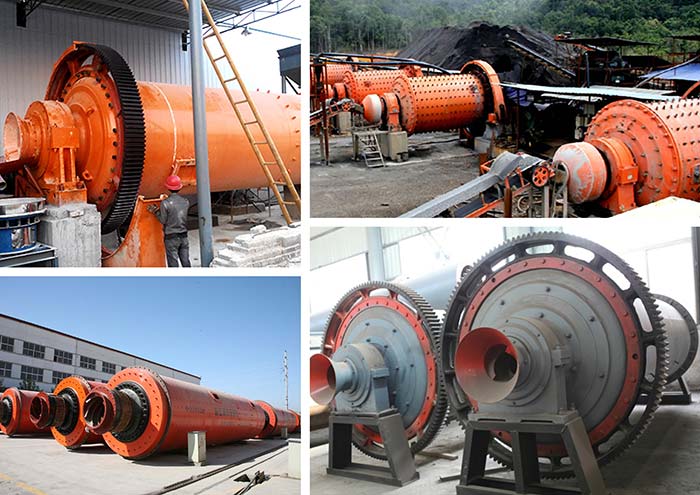

tumbling_mill

The Processed Materials of Tumbling Mill:

Limestone, calcite, barite, dolomite, potassium feldspar, marble, talcum, gypsum, kaolin, bentonite, medical stone, rock phosphate, manganese ore, iron ore, copper ore, gold ore,quartz, active carbon, carbon black, ceramic, coal, etc.

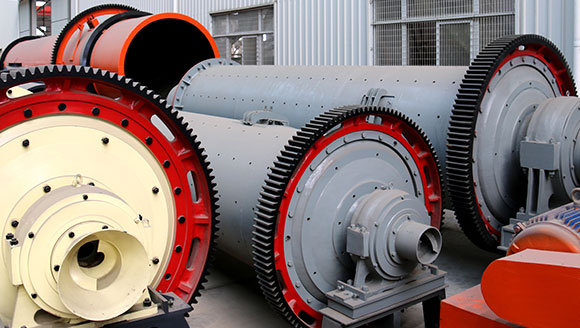

Tumbling Mill

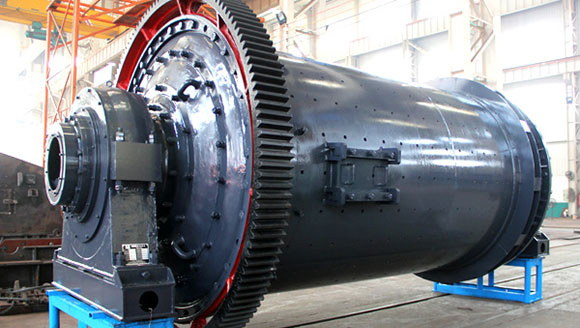

Tumbling mill is mainly composed of feeding part, discharging part, rotary part and driving part which includes reducer, small drive gear, electrical machine and electronic control. The hollow shaft uses steel casting, the inner lining can be dismantled and changed, and the rotary rack wheel uses casting gear hobbing and inside the cylinder there is wear-resisting lining board which has fine abrasion performance. This machine has stable operation and reliable performance.

According the materials and discharging method, Tumbling mill can be divided into dry type Tumbling mill and wet type lattice ball mill.

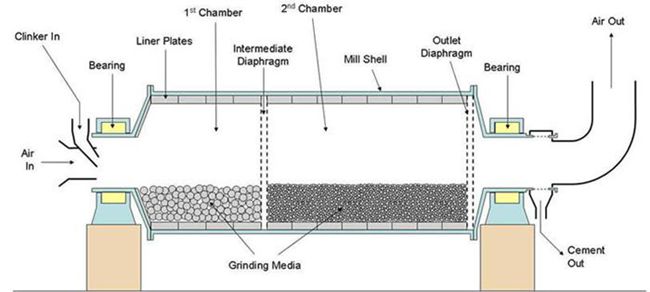

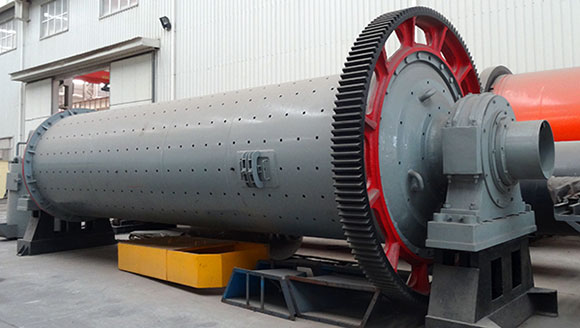

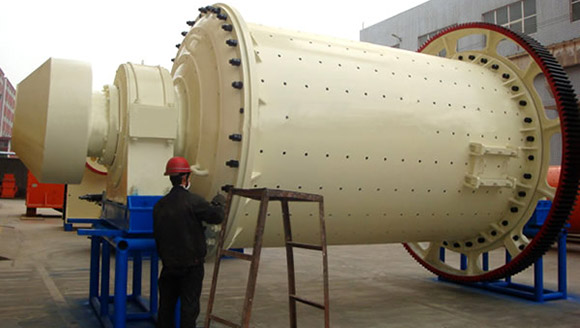

This machine is a horizontal type cylinder rotary device and outside the cylinder there is drive gear which drives the cylinder to rotate during the working process. Materials spirally and evenly go into the first cabin of the grinding machine through the feeding hollow shaft from the feeding device, and inside the first cabin, there are ladder lining boards or ripple lining board in which there are many steel balls with different specifications. The cylinder rotates and produces eccentric force to bring the steel balls to a certain height, and then the steel balls will fall down to impact and grind the materials. After being coarsely ground in the first cabin, the materials will go through the single-layer partition board and into the secondary cabin in which there are flat lining board, and in the lining board there are steel balls to further grind the materials. Finally the powdery materials will be discharged from the discharging grating bar to complete the powder grinding process.

Technical data

Model Shell rotation speed
(r/min)
Ball load
(t)
Feeding size
(mm)
Discharging size
(mm)
Capacity
(t/h)
Motor power
(kw)
Total weight
(t)
Ф900×1800 36-38 1.5 ≤20 0.075-0.89 0.65-2 18.5 5.85
Ф900×3000 36 2.7 ≤20 0.075-0.89 1.1-3.5 22 6.98
Ф1200×2400 36 3 ≤25 0.075-0.6 1.5-4.8 30 13.6
Ф1200×3000 36 3.5 ≤25 0.074-0.4 1.6-5 37 14.3
Ф1200×4500 32.4 5 ≤25 0.074-0.4 1.6-5.8 55 15.6
Ф1500×3000 29.7 7.5 ≤25 0.074-0.4 2-5 75 19.5
Ф1500×4500 27 11 ≤25 0.074-0.4 3-6 110 22
Ф1500×5700 28 12 ≤25 0.074-0.4 3.5-6 130 25.8
Ф1830×3000 25.4 11 ≤25 0.074-0.4 4-10 130 34.5
Ф1830×4500 25.4 15 ≤25 0.074-0.4 4.5-12 155 38
Ф1830×6400 24.1 21 ≤25 0.074-0.4 6.5-15 210 43
Ф1830×7000 24.1 23 ≤25 0.074-0.4 7.5-17 245 43.8
Ф2100×3000 23.7 15 ≤25 0.074-0.4 6.5-36 155 45
Ф2100×4500 23.7 24 ≤25 0.074-0.4 8-43 245 56
Ф2100×7000 23.7 26 ≤25 0.074-0.4 12-48 280 59.5
Ф2200×4500 21.5 27 ≤25 0.074-0.4 9-45 280 54.5
Ф2200×6500 21.7 35 ≤25 0.074-0.4 14-26 380 61
Ф2200×7000 21.7 35 ≤25 0.074-0.4 15-28 380 62.5
Ф2200×7500 21.7 35 ≤25 0.074-0.4 15-30 380 64.8
Ф2400×3000 21 23 ≤25 0.074-0.4 7-50 245 58
Ф2400×4500 21 30 ≤25 0.074-0.4 8.5-60 320 72
Ф2700×4000 20.7 40 ≤25 0.074-0.4 22-80 380 95
Ф2700×4500 20.7 48 ≤25 0.074-0.4 26-90 480 102
Ф3200×4500 18 65 ≤25 0.074-0.4 As per process conditions 630 149
Ф3600×4500 17 90 ≤25 0.074-0.4 As per process conditions 850 169
Ф3600×6000 17 110 ≤25 0.074-0.4 As per process conditions 1250 198
Ф3600×8500 18 131 ≤25 0.074-0.4 45.8-256 1800 260
Ф4000×5000 16.9 121 ≤25 0.074-0.4 45-208 1500 230
Ф4000×6000 16.9 146 ≤25 0.074-0.4 65-248 1600 242
Ф4000×6700 16.9 149 ≤25 0.074-0.4 75-252 1800 249
Ф4500×6400 15.6 172 ≤25 0.074-0.4 84-306 2000 280
Ф5030×6400 14.4 216 ≤25 0.074-0.4 98-386 2500 320
Ф5030×8300 14.4 266 ≤25 0.074-0.4 118-500 3300 403
Ф5500×8500 13.8 338 ≤25 0.074-0.4 148-615 4500 525
