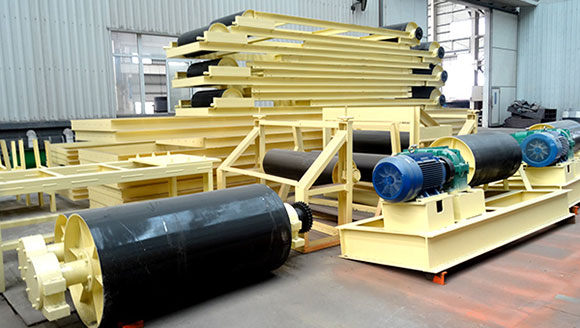

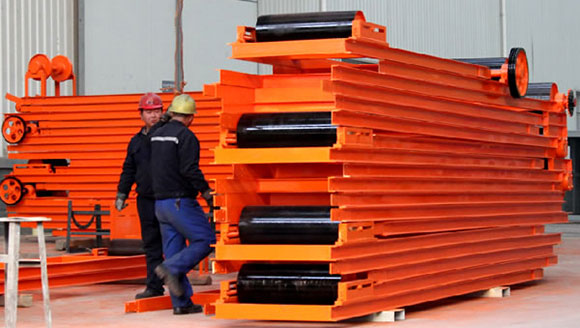

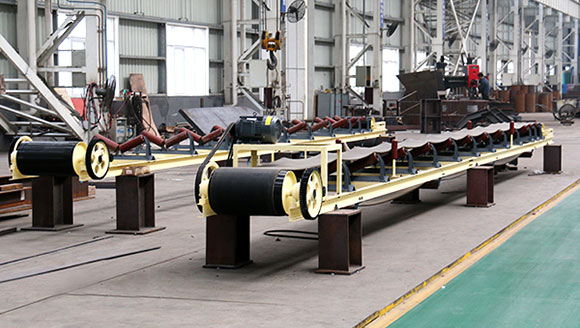

Belt Conveyor System

Processing ability: 78–2195 t/h

Belt width: 500–1600 mm

Conveying speed: 1.3–2.0 m/s

Applied material: coal, gravel, sand, cement, chemical fertilizer, food, etc

  • Photo
  • video

The Handling Materials and Description of Belt Conveyor System:

Belt Conveyor is widely used to transfer sandy or lump material, or packaged material in the production areas for departments of light industry, electron, home appliance, food, tobacco, etc.

The Application Area of Belt Conveyor System:

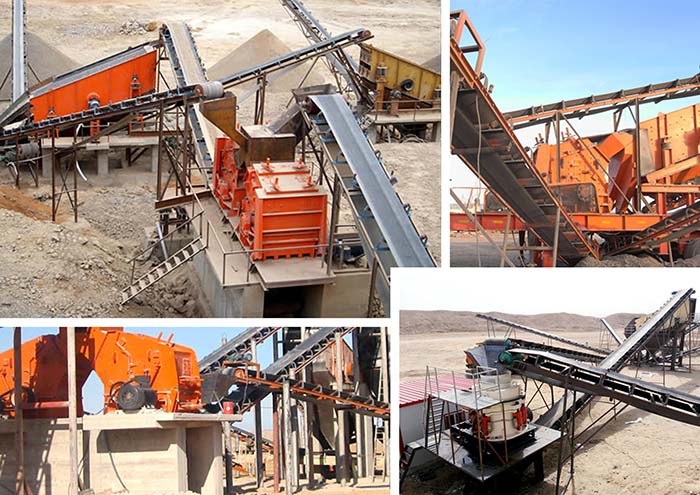

The belt conveyor system is widely used in such industries as of metallurgy, mining, coal, harbor, power station, building materials, chemical engineering, light industry, petroleum, grains, heating, etc

The Working Principle of Belt Conveyor System:

Belt Conveyor System

Belt conveyor systems are generally fairly similar in construction consisting of a metal frame with rollers at either end of a flat metal bed. The belt is looped around each of the rollers and when one of the rollers is powered (by an electrical motor) the belting slides across the solid metal frame bed, moving the product.

The belt conveyor produced by our company can economically and effectively convey all kinds of materials. In the industrial production, the belt conveyor is the bond for continuous production between the production mechanical machines to realize the continuity and automation of the production link and improve the production efficiency and reduce labor intensity.

The belt conveyor moves according to the friction drive principle and its conveying amount is big, conveying distance is long and conveyance is stable, and there is no relative movement between the materials and the belt. With the advantages of low noise, simple structure, convenient maintenance and standard spared parts, it is widely used in the conveyance of bulk materials or piece articles and the production line in mine, metallurgy, chemistry, casting and building material industry and the production departments such as hydropower station construction site and port.

The belt conveyor is mainly composed of rack, conveying belt, belt roller, tension device and driving device. The rack is connected with excellent steel plate, and there are belt roller and carrier roller for driving and supporting the conveying belt, and there are two driving methods: reduction motor drive and motorized pulley drive.

Technical data
