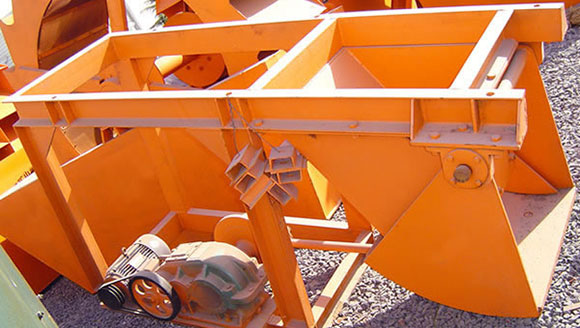

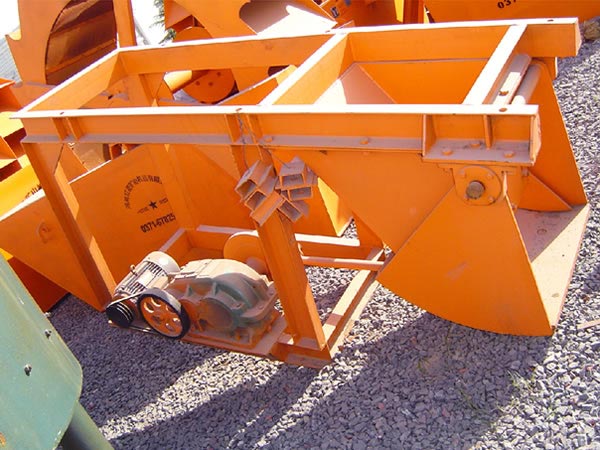

Pendulum Feeder

The Application and Function of Pendulum Feeder:

Pendulum feeder is suitable for feeding the granulate materials from the stock chute through the funnel to the material receiving devices with different models in ore dressing, coal, chemistry and other industrial departments.

Some Notes on Using Pendulum Feeder:

Pendulum Feeder is suitable for concentrating coal chemical industry and other departments, makes the grain delivery to various set of accepting the material from the store chute by the filter. The pendulum feeder is not suitable for delivering the dry power of the too big material or else, it may appear the fly-ash pollution or the jam of the output.

Pendulum feeder is not suitable for feeding dry powder materials or the materials with big granularity, otherwise there will be powder dust pollution and the discharging mouth may be blocked.

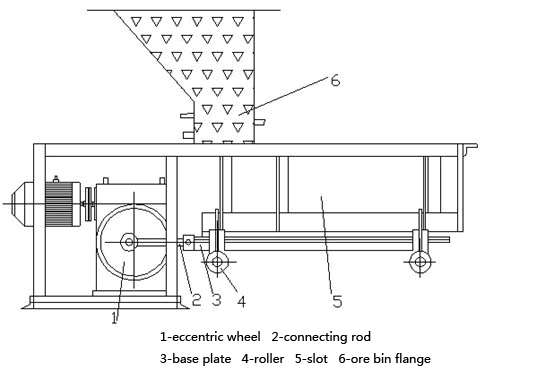

When the electro motor is started, its power is transmitted to the reducer for reducing the speed through the V-shaped belt. The reduced power is transmitted to the eccentric gear with adjustable eccentric distance (the adjustment of the feeding amount needs to adjust the position of the eccentric gear) and the eccentric gear drives the baseboard of the pendulum to move back and forth like an arc through the connecting rod, so that the feeding mouth will open and close repeatedly. The rocks in the ore storage bin above the feeder machine are fed in from the feeding mouth and then evenly discharged from the machine to make sure the ball mill is evenly fed in with materials.

Technical data

Product Size	Processimg Capacity（t/h）	Motor Power （kw）
400×400	0-12	1.1
600×600	3-25	2.2
