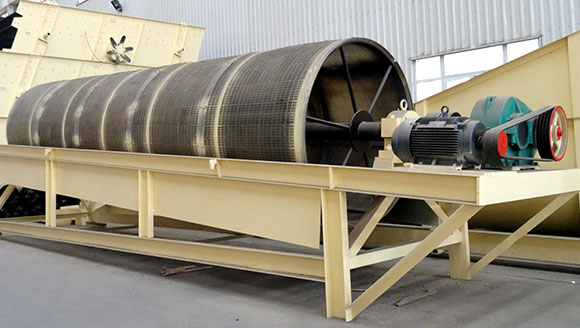

Trommel Screen

Charge Amount:50-150mm

Reference Power:12-150t/h

Application Range:His machine can be used in the grading of powder material, which this the 60-200 mesh screener with good sieving effectiveness.

  • Photo
  • video

The Function and Description of Trommel Screen:

Trommel screen is suitable for classifying powdery materials with outstanding screening effect. The screen mesh is 60-200; power is 0.75-3kw and output is 500-1500kg/h.

drum_screen

The Performance Characteristics of Trommel Screen:

1. The angle of inclination of installation is small and the machine is not very easy to be blocked.

2. Drum screen covers a small size.

3. Low noise and little powder dust pollution.

Trommel Screen

1. Stable operation

2. High screening efficiency

3. Big output

4. Convenient installation

No.

Technical data

Type Model and Specifications Working Area(㎡) Screen Layer Max. Feeding Size(mm) Processing Capacity(t/h) Screen Size(mm) Vibration Times Power(kw)
Self-fixed Centre Vibrating Screen 400×800 0.29 1 50 12 1-25 1500 1.1
400×800 0.29 2 50 12 1-15 1500 0.5
800×1600 1.2 1 100 20-25 3-40 1430 2.2
900×1800 1.52 1 60 20-25 1-25 1000 2.2
900×1800 1.52 2 60 20-25 1-25 1000 2.2
1250×2500 3.15 1 100 150 6-40 850 5.5
1250×2500 3.15 2 150 150 6-40 1200 5.5
