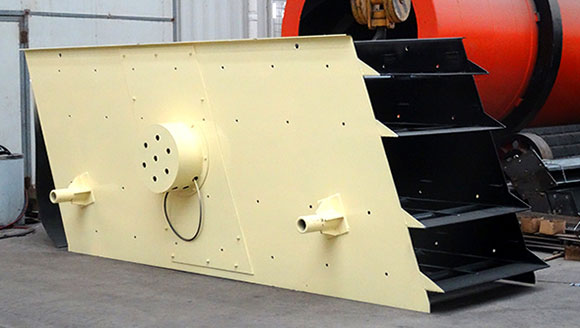

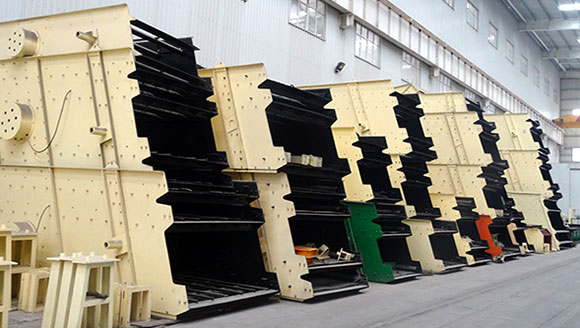

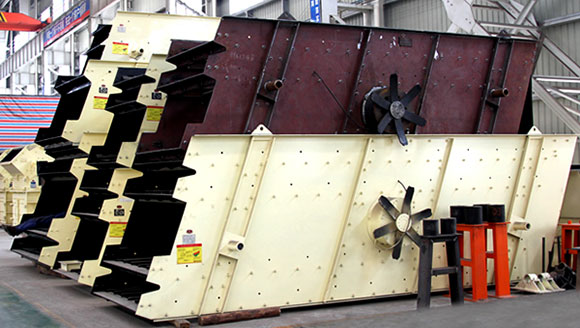

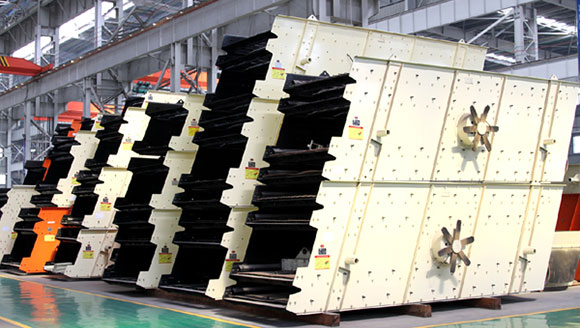

Sand Screening Machine

Processing capacity: 8-800m³/h

Vibrating power: 800-970r/min

Max. feeding size: 400mm

Screen size: 4-100mm

Motor power: 5.5-22×2kw

  • Photo
  • video

The Application and Function of Sand Screening Machine:

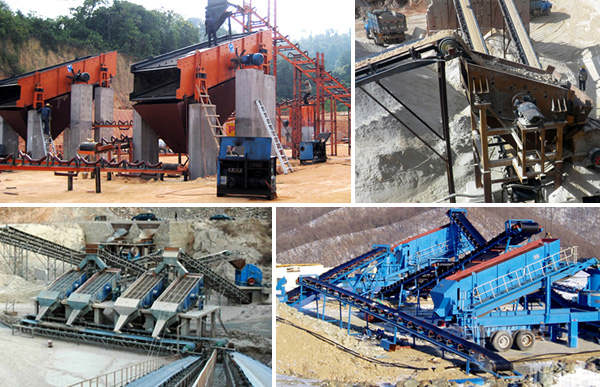

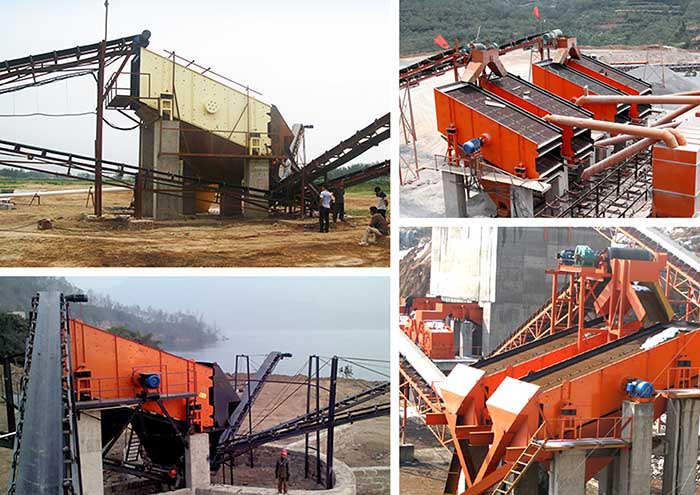

The function of sand screening machine is to separate stone into different sizes, which is widely used in coal dressing, metallurgy, mine, power station, water conservancy project, building industry, light industry and chemical industry, etc.

sand_screen

The Advantages and Benefits of Sand Screening Machine:

Sand screening machine has the following advantages including long lifespan, many screening specifications, strong violent vibration force, high screening efficiency, small vibrating noises, firm and durable construction, convenient maintenance and safe operation.

Sand Screening Machine

The Advantages and Benefits of Sand Screening Machine:

Sand screening machine has the following advantages including long lifespan, many screening specifications, strong violent vibration force, high screening efficiency, small vibrating noises, firm and durable construction, convenient maintenance and safe operation.

The Working Process of Sand Screening Machine:

Sand screening machine produces vibrating force by vibrating generator; which makes screen body vibrate periodically according to vibrating direction. Materials are separated into various sizes according to different requests, and then being transported to specified places. Vibrating frequency can be adjusted by adjusting eccentric block.

Technical data

Model Sieve
layer
Sieve
area
(m²)
Mesh
size
(mm)
Max.
feeding
size
(mm)
>Processing
 capacity
(m³/h)
Vibrating
Frequency
(r/min)
Double
amplitude
(mm)
Motor
power
(kw)
Sieve
obliquity
(°)
Sieve
specification
(mm)
>Dimensions
(L×W×H)
(mm)
2YK1225 2 6 4-50 400 8-60 800-970 8 6P   5.5 20 1200×2500 2930×1860×870
3YK1225 3 9 4-50 400 10-70 800-970 8 6P   5.5 20 1200×2500 3070×1860×1210
2YK1230 2 7.2 4-50 400 12-78 800-970 8 6P   7.5 20 1200×3000 3430×1860×870
3YK1230 3 10.8 4-50 400 13-80 800-970 8 6P   7.5 20 1200×3000 3570×1860×1210
2YK1237 2 8.88 4-50 400 15-86 800-970 8 6P   7.5 20 1200×3700 4050×1860×870
3YK1237 3 13.32 4-50 400 16-90 800-970 8 6P   7.5 20 1200×3700 4270×1860×1210
2YK1535 2 10.5 5-50 400 20-125 800-970 8 6P   11 20 1500×3500 4120×2210×1230
3YK1535 3 15.75 5-50 400 21-125 800-970 8 6P   11 20 1500×3500 4360×2210×1610
2YK1545 2 13.5 5-50 400 22-150 800-970 8 6P   11 20 1500×4500 5120×2210×1230
3YK1545 3 20.25 5-50 400 22-150 800-970 8 6P   15 20 1500×4500 5360×2210×1610
4YK1545 4 27 5-50 400 22-155 800-970 8 6P   15 20 1500×4500 5930×2210×2060
2YK1548 2 14.4 5-50 400 22.5-162 800-970 8 6P   11 20 1500×4800 5420×2210×1230
3YK1548 3 21.6 5-50 400 22.5-162 800-970 11 6P   15 20 1500×4800 5660×2210×1610
4YK1548 4 28.8 5-50 400 22.5-162 800-970 8 6P   18.5 20 1500×4800 6230×2210×2060
2YK1848 2 17.28 5-80 400 25-206 750 8 6P  18.5 20 1800×4800 5420×2550×1420
3YK1848 3 25.92 5-80 400 32-276 750 8 6P   18.5 20 1800×4800 5660×2550×1780
4YK1848 4 34.56 5-80 400 32-285 750 8 6P   22 20 1800×4800 6290×2550×2160
2YK1854 2 19.44 5-80 400 32-312 800-970 8 6P   22 20 1800×5400 5960×2550×1420
3YK1854 3 29.16 5-80 400 32-312 800-970 8 6P   22 20 1800×5400 6260×2550×1780
4YK1854 4 38.88 5-80 400 32-336 800-970 8 6P  22 20 1800×5400 6830×2550×2160
2YK2160 2 25.2 5-100 400 50-475 970 8 6P   30 20 2100×6000 6720×2840×1530
3YK2160 3 37.8 5-100 400 50-475 970 8 6P  30 20 2100×6000 7030×2840×1910
4YK2160 4 50.4 5-100 400 50-497 970 8 6P   37 20 2100×6000 7300×2840×2380
2YK2460 2 28.8 5-100 400 65-550 970 8 6P   30 20 2400×6000 7020×3140×1530
3YK2460 3 43.2 5-100 400 70-620 970 8 6P   37 20 2400×6000 7300×3140×1910
4YK2460 4 57.6 5-100 400 80-680 970 8 6P   45 20 2400×6000 7600×3140×2380
2YK2870 2 39.2 5-100 400 120-680 750 8 8P   22×2 20 2800×7000 7600×4320×1620
3YK2870 3 58.8 5-100 400 180-720 750 8 8P   22×2 20 2800×7000 7800×4320×2120
2YK3072 2 43.2 5-100 400 200-700 750 8 8P   22×2 20 3000×7200 7800×4520×1750
3YK3072 3 64.8 5-100 400 230-800 750 8 8P   22×2 20 3000×7200 8000×4520×2300
