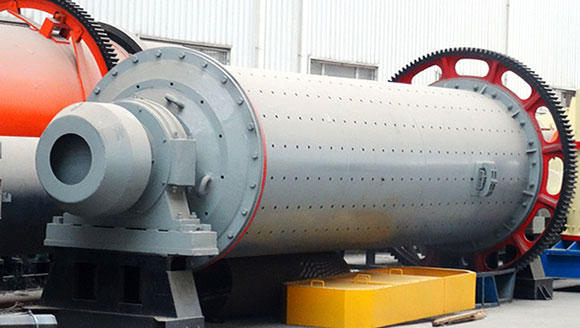

MBS Rod Mill

Processing ability: 0.5–500 t/h

Feeding size: ≤25 mm

Applied material: cement, silicate, new-type building material, refractory material, fertilizer, ore dressing of ferrous metal and non-ferrous metal.

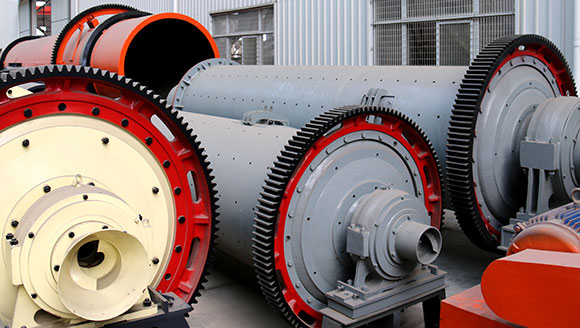

  • Photo
  • video

The Main Types of Rod Mill:

Rod mill is divided into dry type and wet type and the customers can choose suitable type according specific needs.

The Application and Advantages of Rod Mill:

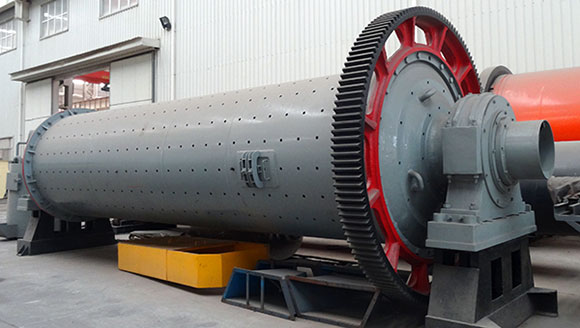

Rod Mill

The discharging granularity of rod mill is evener and the output is higher. It is widely used in the grinding process that has higher requirement for the uniformity of the final products in wear-resisting material, chemistry, and metallurgy and glass industry and in recent years it is also used in the sand making industry.

The features of rod mill are that in the ore grinding process, the grinding media contact with the ore in a linear manner, so that it has selective grinding function. The granularity of the final products is even, and the amount of the particles that are over crushed and ground is low. When used for coarse grinding, the processing amount of rod mill is higher than that of the ball mill with the same specification.

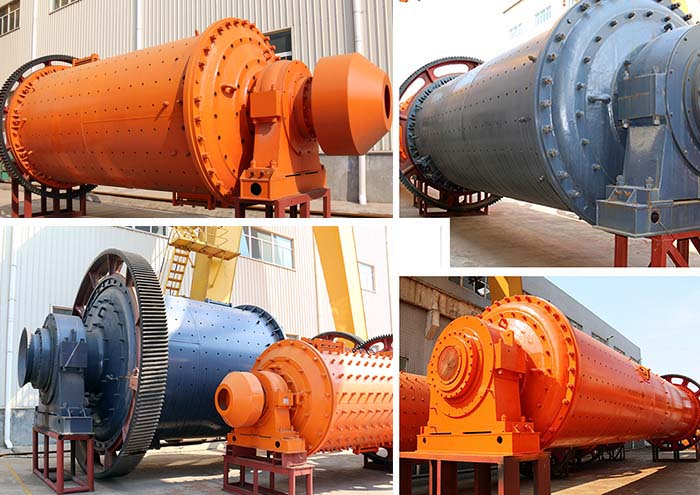

Rod Mill

The electro motor drives the cylinder to rotate through the reduction gears and the peripheral rack wheel reducer transmission, or the low speed synchronous motor directly drives the cylinder to rotate through the peripheral rack wheel reducer transmission. Inside the cylinder, there are proper ore grinding media-steel rod. Under the eccentric force and frictional force, the ore grinding media are lifted to a certain height and fall down in the state of dropping. The materials to be ground continuously go into the cylinder from the ore feeding mouth and are crushed by the moving grinding media, and then are discharged by the overflow and the force of continuous feeding to go to the next procedure.

Technical data

Model
Shell Specifications (mm)
Shell rotation speed
(r/min)
Feeding size
(mm)
Discharging size
(mm)
Processing capacity
(t/h)
Power
(kw)
Total weight
(t)
Diameter Length
MBS0918 900 1800 36-38 ≤25 0.833-0.147 0.62-3.2 18.5 5.9
MBS0924 900 2400 36 ≤25 0.833-0.147 0.81-4.3 22 6.7
MBS1224 1200 2400 36 ≤25 0.833-0.147 1.1-4.9 30 13.9
MBS1530 1500 3000 29.7 ≤25 0.833-0.147 2.4-7.5 75 19.8
MBS1830 1830 3000 25.4 ≤25 0.833-0.147 4.8-11.6 130 34.9
MBS2130 2100 3000 23.7 ≤25 0.833-0.147 14-35 155 46.5
MBS2136 2100 3600 23.7 ≤25 0.833-0.147 19-43 180 48.7
MBS2430 2400 3000 21 ≤50 0.833-0.147 25-65 245 59.7
MBS2736 2700 3600 20.7 ≤50 0.833-0.147 32-86 380 92.5
MBS2740 2700 4000 20.7 ≤50 0.833-0.147 32-92 400 95
MBS3245 3200 4500 18 ≤50 0.833-0.147 64-180 630 149
