Sawdust dryer

Volume weight: 13.5-105(t)

Processing capacity: 2.5-36(t/h)

Applied material: corn stalks, soybean straw, cotton stalks, wheat straw, sorghum stalks dry, sawdust, wood shavings, leaves, mulberry leaves.

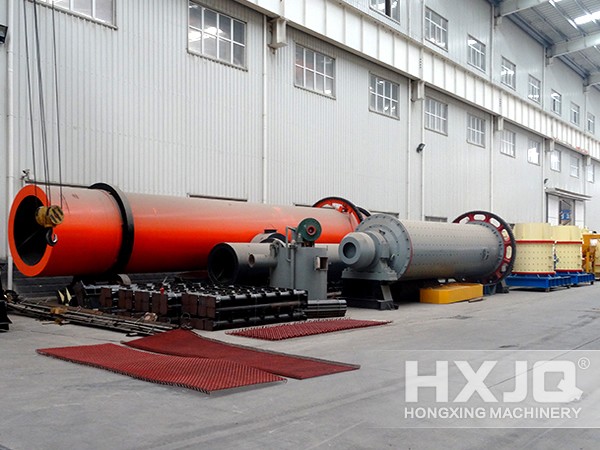

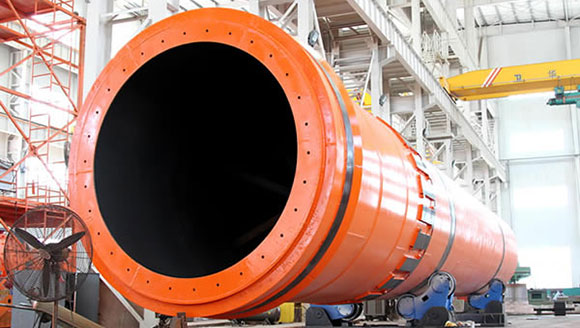

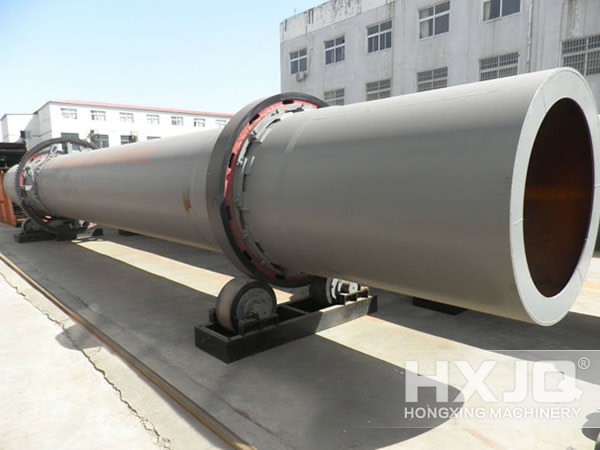

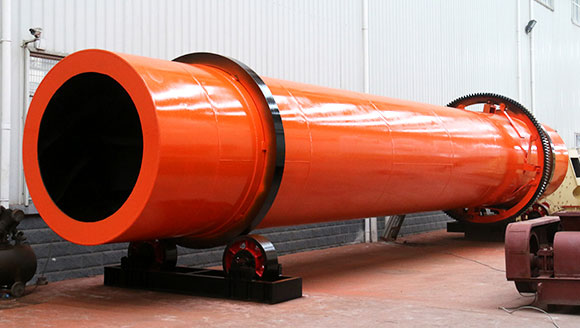

  • Photo
  • video

The Handling Materials and Application of Sawdust Dryer:

The sawdust dryer is widely applied in mining, metallurgy, building materials, chemistry and other industries, mainly stoving mineral powder,slag, clay, sand, limestone, lignite and other ,materials.

dryer

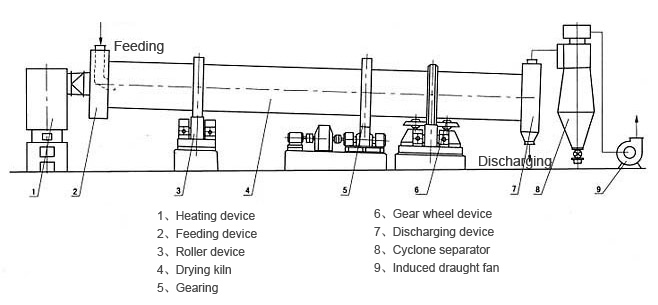

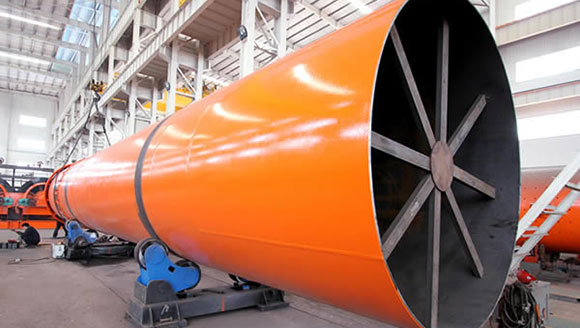

The Advanced Inner Structure of Sawdust Dryer:

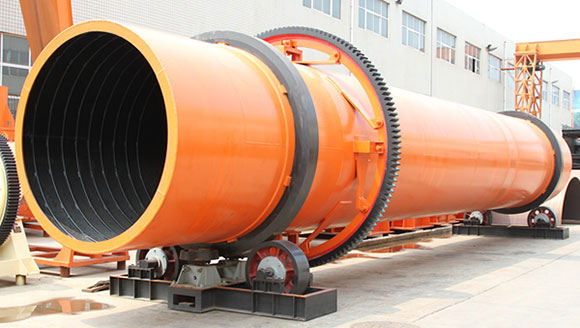

Sawdust dryer is composed of the cylinder, before and after the roller circle, a large gear, gear roll, drag roller, a small gear, a feeding device, lifting plate, reducer, motor, feeding devices and other components.

dryer

The Working Principle of Sawdust Dryer:

1. The raw material plate which is arranged reasonably with changeable angles in order, throws moisture materials into the rotary cylinder.

2. Then water will be separated from the materials by hot airflow and changed into vapour to be discharged into the atmosphere.

3. Then the materials would be dried.

1. High drying strength, as the material is highly dispersed in the air, total surface area of particle is effective area.

2. Short drying time.

3. Simple structure, covering a small area, easy to construct and maintain.

4. Large capacity, high thermal efficiency.

The structure of sawdust drying machine includes heating furnace, feeding mouth, rotating tube, filter tube, material conveying tube, cooling tube and discharging mouth. Sawdust will be fully dried in rotating tube, and sawdust will be fully diffused again before entering into material conveying tube, making moisture evaporate fast, and the retaining block can block impurities in sawdust, to guarantee the quality of sawdust entered conveying tube.

Technical data

Spec./m
(Dia.×Length)
Shell Cubage
(m³)
Capacity
(t/h)
Installation
Obliquity
(%)
Highest Inlet
Air Temperature
(℃)
Main Motor
(kw)
Weight
(t)
Φ1.2×8.0
9.0
1.9~2.4
3~5
700~800
7.5
9
Φ1.2×10
11.3
2.4~3.0
3~5
700~800
7.5
11
Φ1.5×12
21.2
4.5~5.7
3~5
700~800
15
18.5
Φ1.5×14
24.7
5.3~6.6
3~5
700~800
15
19.7
Φ1.5×15
26.5
5.7~7.1
3~5
700~800
15
20.5
Φ1.8×12
30.5
6.5~8.1
3~5
700~800
18.5
21.5
Φ1.8×14
35.6
7.6~9.5
3~5
700~800
18.5
23
Φ2.2×12
45.6
9.7~12.2
3~5
700~800
22
33.5
Φ2.2×14
53.2
11.4~14.2
3~5
700~800
22
36
Φ2.2×16
60.8
13.0~16.2
3~5
700~800
22
38
Φ2.4×14
63.3
13.5~16.9
3~5

700~800
37
45
Φ2.4×18
81.4
17.4~21.7
3~5
700~800
37
49
Φ2.4×20
90.4
19.3~24.1
3~5
700~800
45
54
Φ2.4×22
99.5
21.2~26.5
3~5
700~800
45
58
Φ2.6×24
127.4
27.2~34.0
3~5
700~800
55
73
Φ3.0×20
141.3
30.1~37.7
3~5
700~800
75
85
Φ3.0×25
176.6
37.7~47.1
3~5
700~800
75
95
Φ3.2×25
201
42.9~53.6
3~5
700~800
90
110
Φ3.6×28
285
60.8~76.0
3~5
700~800
160
135

Technical parameters of indirect heat dryer:

  Shell
diameter
×shell
Length
Items
Inside
diameter
of outer
shell
(mm)
Inside
diameter
of inner
shell
(mm)
Shell
 Length
(m)
Shell
 cubage
(m³)
Shell
obliquity
Lifting
blade
 form
Highest
inlet air
 temperature
(℃)
Dimensions
(m)
Φ1.5×15m 1500 500 15 20.27 3-5% Lifting form 850 16.2×2.7×2.7
Φ1.5×17m 17 22.97 18.2×2.7×2.7
Φ1.5×19m 19 25.68 20.0×2.9×2.9
Φ1.8×21m 1800 650 21 35.91 3-5% Lifting form 850 22.5×2.7×2.7
Φ1.8×23m 23 39.33 24.5×2.9×2.9
Φ1.8×25m 25 42.75 26.5×2.9×2.9
Φ2.2×21m 2200 800 21 58.10 3-5% Lifting form 850 ----
Φ2.2×23m 23 63.61
Φ2.2×25m 25 69.15
