Mobile Vibrating Screen

Feeding size: 300-700mm

Processing capacity: 20-250t/h

Applied material: river gravel, limestone, granite, basalt, diabase, andesite and so on.

  • Photo
  • video

The Handling Materials of Mobile Vibrating Screen:

Mobile vibrating screen can be used to process some materials such as river gravel, gravel, granite, basalt, quartz, iron ore, diabase, limestone, coal and so on.

The Application and Advantages of Mobile Vibrating Screen:

The mobile vibrating screen has the following structures such as reliable structure, strong exciting force, high screening efficiency, low vibrating noise, long durability, convenient maintenance, safe operation, etc. Which is widely used for screening in wide rang including mines, building material, transportation, energy sources, chemical industry, etc.

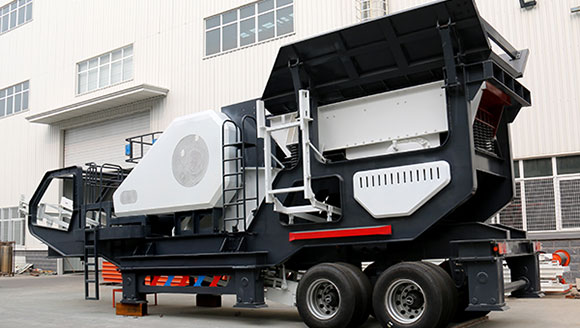

Mobile Vibrating Screen

The Performance Characteristics of Mobile Vibrating Screen:

1. Advanced structure; firm and durable; stable running

2. Low motor power, generally 1/4-1/5 of that of other similar screen

3. High screening efficiency

4. Adjustable angle of screen surface

1. Ship-shape steel structure, low vehicle chassis, light weight, small radius of turning circle, suitable for small crushing site.

2. Advanced touch control panel and PCL control system, function of failures and safety prompt.

3. The feeder has automatic feeding function, and automatic control the direction of material feeding.

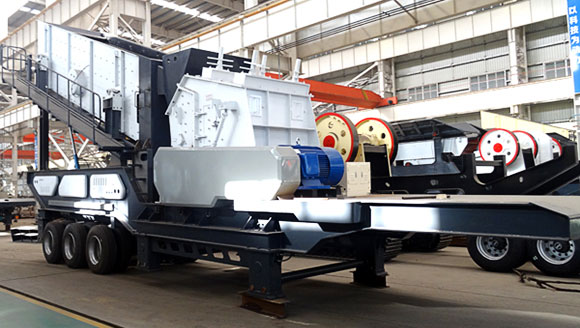

Materials are evenly transported into the crusher by conveyor belt, then be crushed by primary impact crusher, to realize circle crushing through closed system constituted by circular vibrating screen. Finished material with specified size will be transported through conveyor. The secondary wheel mobile impact crusher can be equipped with feeder according to the actual production needs, to achieve convenient and flexible used together with other crushing equipment.

Technical data

Model HX3S1848 HX3S1860 HX3S2160
Transportation Length(mm) 10280 11480 11480
Transportation Width(mm) 2830 2830 3150
Transportation Height(mm) 4350 4350 4350
Maximum Length(mm) 11100 11800 11800
Maximum Width(mm) 3600 3600 3970
Maximum Height(mm) 6000 6000 6500
Weight(t) 16 18 19
Tire Configuration biax fitted biax fitted biax fitted
Vibrating Screen 3YZS1848 3YZS1860 3YZS2160

Quick Way to Get Price

Please tell us your materials, capacity and finished product design, we can offer better service for you. Contact Email: sales@hxjq.com
