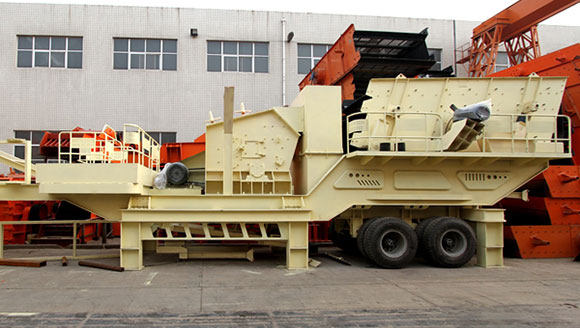

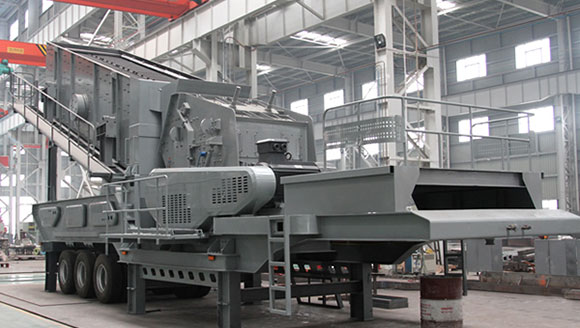

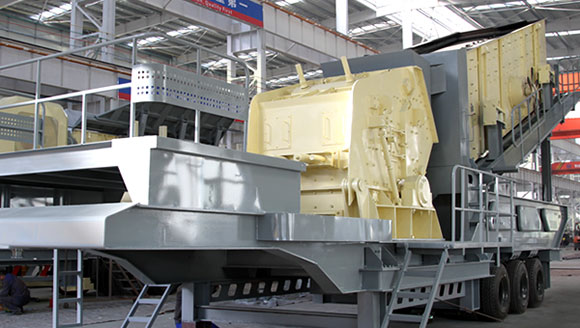

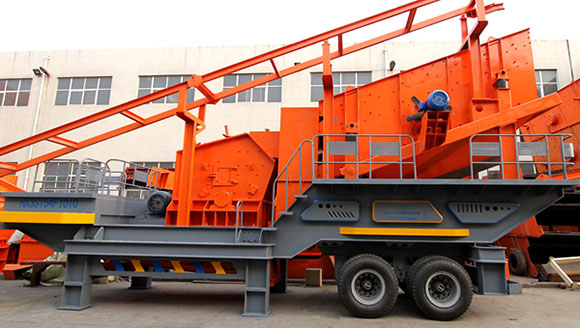

Mobile Impact Crusher

The Handling Materials and Application of Mobile Impact Crusher:

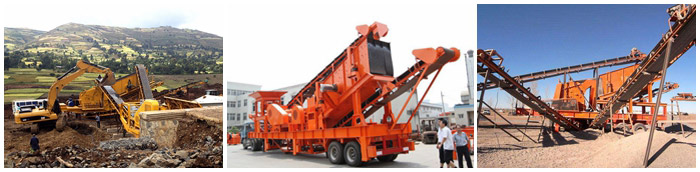

Mobile impact crusher can be used to process those materials such as granite, basalt, cobble, bauxite, cement clinker, quartz, silicon carbide, mine, iron ore and etc. Which also can be applied for some areas including mining ore crushing, building waste recycling, construction aggregate production, highway, railway, and road and bridge construction and so on.

The Structure Composition of Mobile Impact Crusher:

1. High performance jaw crusher, impact crusher or cone crusher.

2. Integrated vehicle mounting of feeder, belt conveyor, and vibrating screen.

3. Equipped with steering shaft of traction for convenient transportation and thoroughly site work.

4. Vehicle-mounted motor and control cabinet.

The Advantages and Benefits of Mobile Impact Crusher:

1. Flexible equipment

2. Direct and effective process

3. Strong adaptability, flexible configuration

1. Ship-shape steel structure, low vehicle chassis, light weight, small radius of turning circle, suitable for small crushing site.

2. Advanced touch control panel and PCL control system, function of failures and safety prompt.

3. The feeder has automatic feeding function, and automatic control the direction of material feeding.

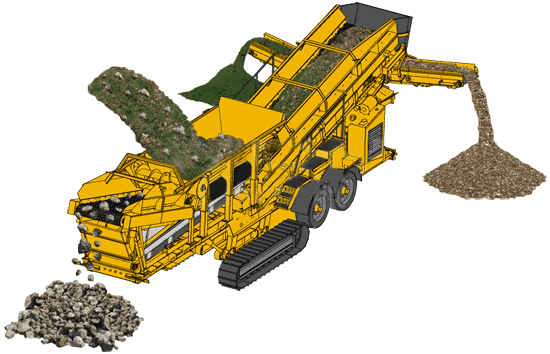

Materials are evenly transported into the crusher by conveyor belt, then be crushed by primary impact crusher, to realize circle crushing through closed system constituted by circular vibrating screen. Finished material with specified size will be transported through conveyor. The secondary wheel mobile impact crusher can be equipped with feeder according to the actual production needs, to achieve convenient and flexible used together with other crushing equipment.

Technical data

Model	HX938F1210	HX938F1214	HX1149F1315	HX938F1110	HX1349F1315
Transportation Length（mm）	12000	12000	13900	15450	15450
Transportation Width（mm）	2550	2550	2900	2950	2950
Transportation Height（mm）	3900	3900	4450	4500	4500
Maximum Length（mm）	12500	12500	13900	15450	15450
Maximum Width（mm）	3250	3260	3250	3250	3250
Maximum Height（mm）	5100	5200	5200	5200	5200
Weight（t）	39	44	54	62	62
Crusher Model	PF-1210	PF-1214	PF-1315	HD1110	HD1315
The Maximum Feeding Size（mm）	350	350	500	400	700
Production Capacity（t/h）	70-130	100-180	130-250	112	280
Vibrating Feeder	ZSW950×3800	ZSW950×3800	ZSW110×4900	ZSW130×4900	ZSW130×4900
Main Belt Conveyor	B800×8.5M	B800×8.5M	B1000×9.5M	B800×11M	B1200×11M
Side-opening Belt conveyor(Optional)	B500×3.2M	B500×3.2M	B650×4M	B650×4M	B650×4M
Genset(Optional) （kw）	320	320	400	320	440
Iron Separator (Optional)（kw）	RCYD(C)-8	RCYD(C)-8	RCYD(C)-10	RCYD(C)-8	RCYD(C)-12
