Home > Solution > Aggregate Crushing Plant

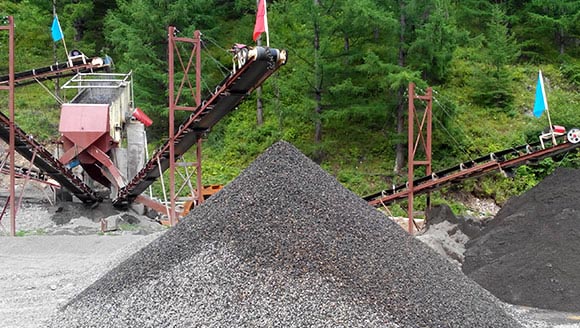

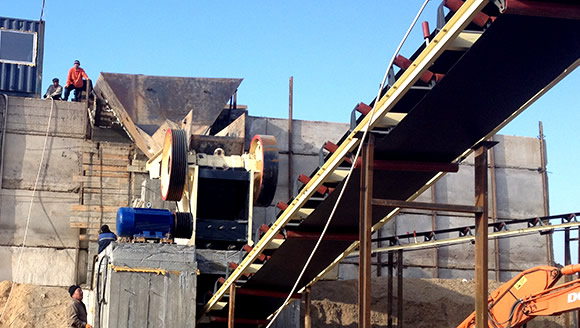

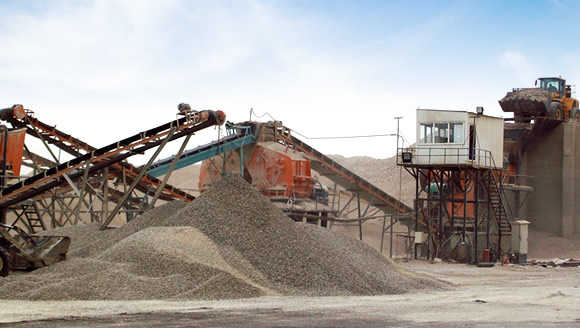

Aggregate Crushing Plant

Production Capacity:50-800t/h

Application Ranges: mining, stone crushing production

Hongxing Aggregate crushing plant aims for producing crushed stone aggregate.

  • Photo
  • video

The Description and Function of Aggregate:

Construction aggregate, or simply "aggregate", is a broad category of coarse particulate material used in construction, including sand, gravel, crushed stone, slag, recycled concrete and geosynthetic aggregates. Aggregates are the most mined material in the world. Aggregates are a component of composite materials such as concrete and asphalt concrete; the aggregate serves as reinforcement to add strength to the overall composite material.


The Major Equipment of Aggregate Crushing Plant:

Hongxing aggregate crushing plant aims for producing crushed stone aggregate. Crushed stone aggregate is produced from many natural deposits including: limestone, granite, trap rock and other durable mineral resources.This aggregate production line is mainly composed of vibrating feeder, jaw crusher, impact crusher, vibrating screen, belt conveyor and centralized electronic control and so on.

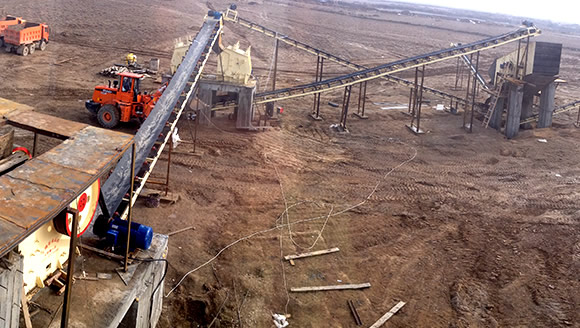

Aggregate Production Line

Hongxing Machinery is a premier supplier of crushing and screening equipment, and related auxiliary equipment in China. We provide complete crushers and screen machines for producing all types of aggregate. One unit of Hongxing aggregate production line can produce up to 50-800TPH, the grain size will be 0-5mm, 5-10 mm, 10-20mm, 20-40mm, 40-60mm and even larger.

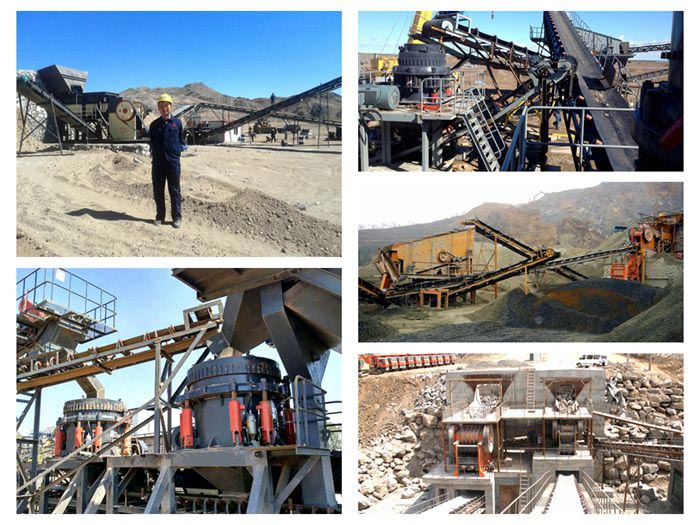

Aggregate Crusher Plant

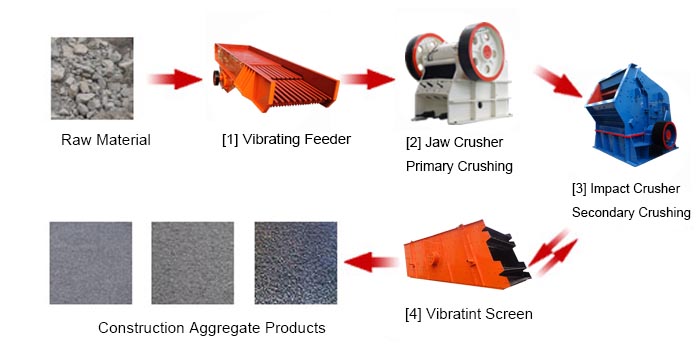

The Working Process of Aggregate Production Line:

1. The blasted raw stones was hauled to the a stockpile by heavy duty truck;

2. The raw stones like granite, basalt, marble, limestone, cobble stone etc. will be fed into jaw crusher as primary crushing machine;

3. The crushed stones will be transferred to impact crusher for further processing;

4. According to the clients application, the crushed stone will be sieved into different grade by 5. vibrating screen, or be transferred to cone crusher for fineness crushing;

5. After screening process, aggregate washing machine will be needed to clear away the dust and small particles.

Technical data

Production Capacity: 50-800t/h

Application Ranges: mining, stone crushing production

Hongxing Aggregate crushing plant aims for producing crushed stone aggregate.
